About the product

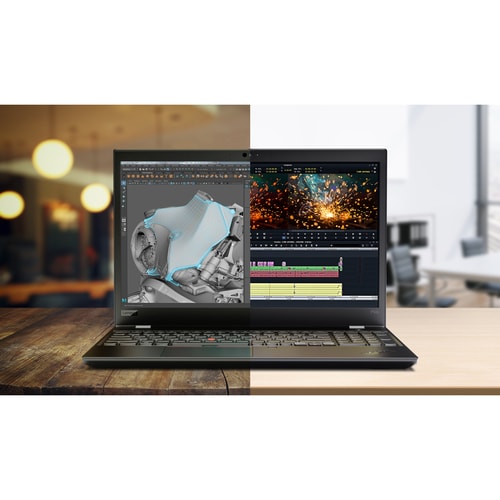

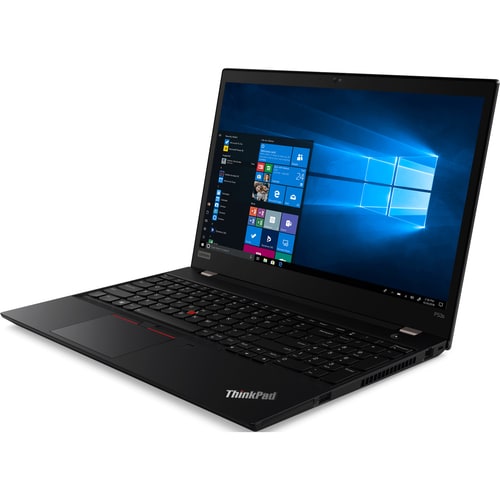

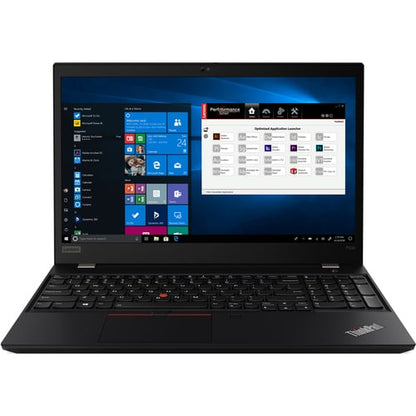

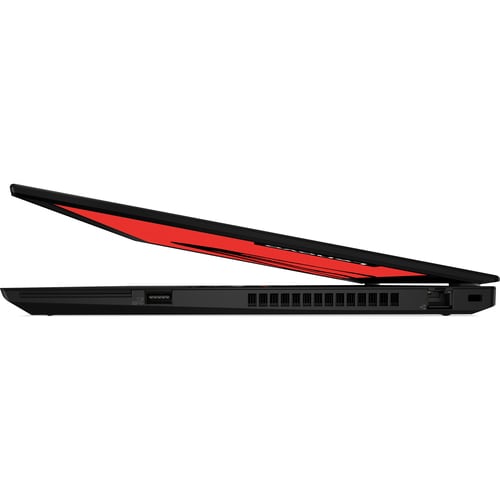

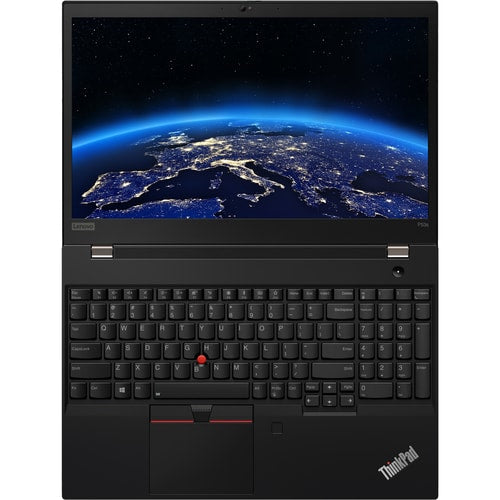

P Series Mobile Workstations
Our most powerful laptops
Fusing the portability of a laptop and the performance of a workstation, the ThinkPad P Series laptops are ISV-certified for all major applications. These systems feature lightning-fast graphics and processing, and the latest cutting-edge technology to handle your compute-intensive needs-in surprisingly light packages.
- 15 Hours battery run time helps you stay unwired and work longer non-stop

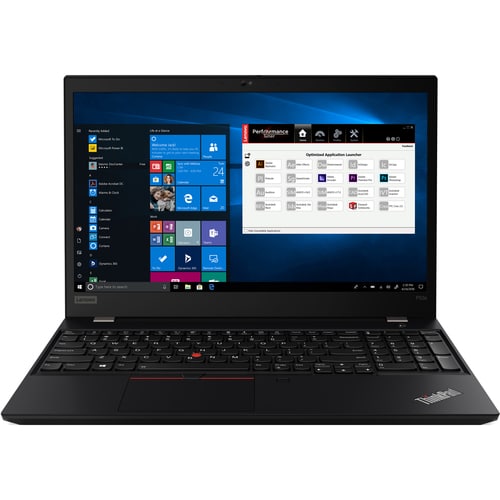

- Windows 10 Pro comes with improved 2 x 2 snapping, helps you make more productive at work
- Intel Core i7 1.80 GHz processor provides lightning fast speed and peak performance for the toughest of tasks and games

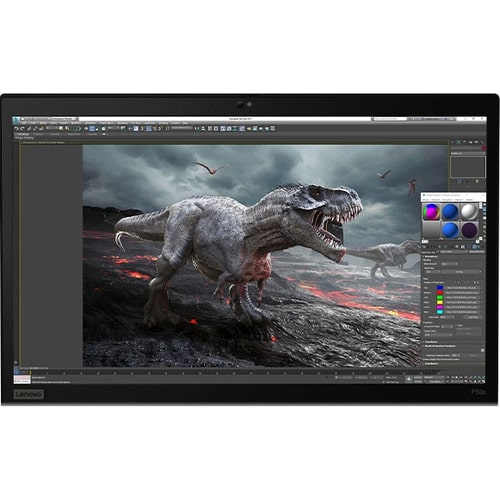

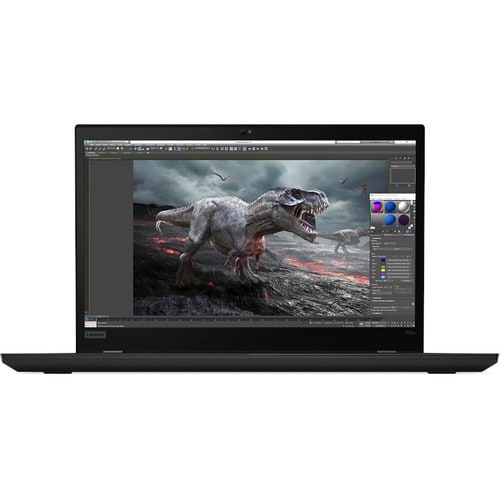

- 15.6" display with 1920 x 1080 resolution showcases movies, games and photos with impressive clarity
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Warranty | |
| Additional Warranty Information | 3-year, Depot |
| Battery Information | |
| Maximum Battery Run Time | 15 Hours |
| Number of Batteries | 1 |
| Input Devices | |
| Keyboard Backlight | Yes |
| Keyboard Localization | English |
| Technical Information | |
| Release Month | January |
| Release Year | 2020 |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Power Plug Type | Type C |
| USB Power Delivery Support | Yes |
| Built-in Devices | |
| Focus Modes | Fixed Focus |
| Finger Print Reader | Yes |
| Front Camera/Webcam | Yes |

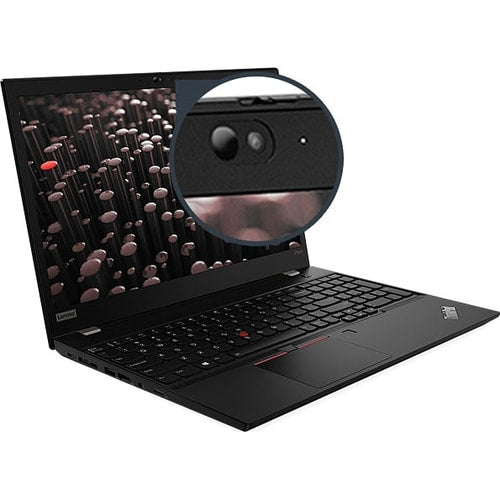

| Camera Privacy Shutter | Yes |
| Operating System | |
| Operating System | Windows 10 Pro |
| Operating System Architecture | 64-bit |
| Operating System Platform | Windows |
| Operating System Language | English |
| Storage | |
| Drive Type | SSD |
| Optical Drive Type | No |
| Total Solid State Drive Capacity | 512 GB |
| SSD Form Factor | M.2 |

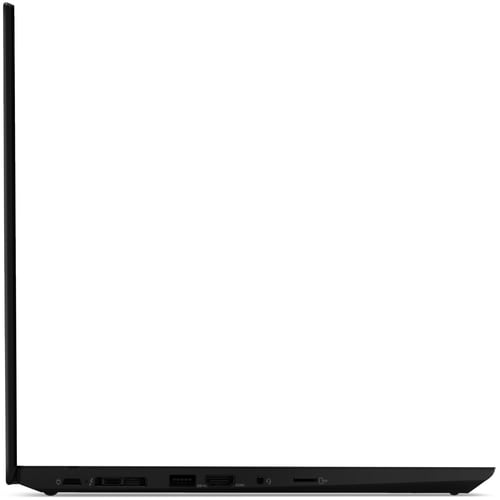

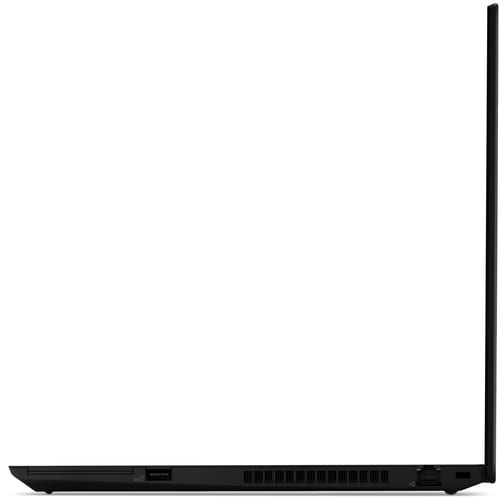

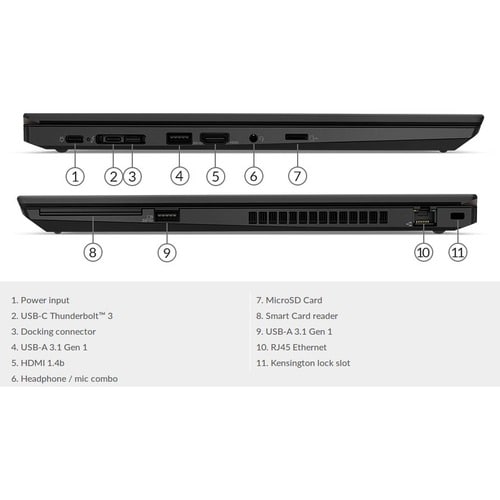

| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.1 Gen 1 Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | one USB 3.1 Type-C Gen 1 (with the function of Power Delivery and DisplayPort), one USB 3.1 Type-C Gen 2 / Thunderbolt 3 (with the function of PD and DP) |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| WWAN Supported | No |
| Wireless LAN Standard | IEEE 802.11ac |
| Ethernet Technology | Gigabit Ethernet |
| Near Field Communication | No |
| Wimax | No |
| Physical Characteristics | |
| Weight (Approximate) | 3.86 lb (1750 g) |
| Height | 0.75" (19.05 mm) |
| Width | 14.40" (365.76 mm) |
| Depth | 9.76" (247.90 mm) |
| Cover Material | Polyamide/Glass Fiber/Polyphenylene Sulfide (PPS) |
| Product Color | Black |
| Color Family | Black |
| Processor | |
| Processor Speed | 1.80 GHz |
| Processor Type | Core i7 |
| Processor Model | i7-8565U |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 4.60 GHz |
| Processor Generation | 8th Gen |
| Processor Threads | 8 |
| General Information | |
| Product Type | Mobile Workstation |
| Manufacturer Part Number | 20N60053US |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 20N60053US |
| Product Name | ThinkPad P53s 20N60053US |
| Product Line | ThinkPad |
| Product Series | P53s |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents | |
| Features | Anti-glare Screen |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 8.0 |
| Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) | |
| Charger Included | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Memory | |
| Number of Occupied Memory Slots | 1 |
| On-board Memory | 8 GB |
| On-board Memory Technology | DDR4 SDRAM |
| Total Installed System Memory | 24 GB |
| Maximum Supported System Memory | 48 GB |
| System Memory Technology | DDR4 SDRAM |
| System Memory Speed | 2400 MHz |
| System Memory Form Factor | On-board + SoDIMM |
| Total Number of Memory Slots | 1 |
| Installed Slot Memory | 16 GB |
| Display & Graphics | |
| Screen Resolution | 1920 x 1080 |
| Brightness | 250 cd/m² |
| Screen Size | 15.6" |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| NVIDIA | |
| Graphics Controller Model | UHD Graphics 620 |
| Quadro P520 | |
| Graphics Memory Capacity | 2 GB |
| Graphics Memory Technology | DDR4 SDRAM |
| GDDR5 | |
| Graphics Memory Accessibility | Dedicated |
| Shared | |
| Display Screen Technology | In-plane Switching (IPS) Technology |
| Color Gamut | 45% NTSC |
